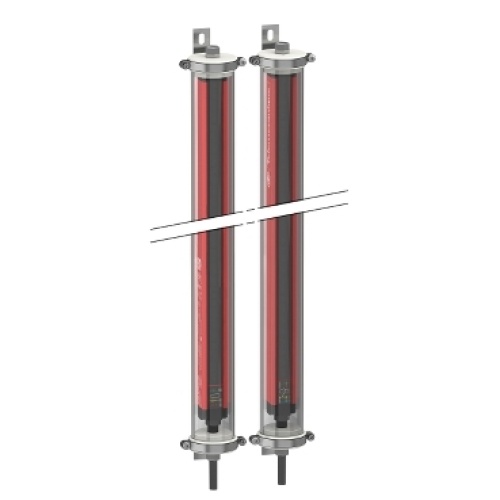

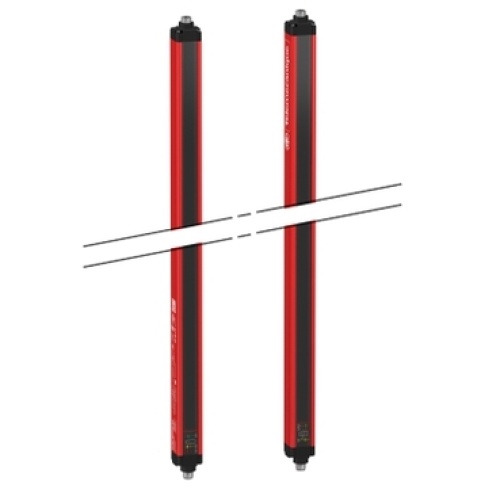

Schneider XUSL4E30H106NM Transmitter-receiver system,Daisy chain master 0 – 12 m,0 – 4 m Type 4 SIL 3 For hand protection Safety light curtain type 4

Schneider XUSL4E30H106NM Transmitter-receiver system,Daisy chain master 0 – 12 m,0 – 4 m Type 4 SIL 3 For hand protection DC,Safety outputs OSSD,Solid-state,PNP 24 VDC 1 Multi-colour LED transmitter,2 Dual colour LEDs receiver DC,Automatic,Manual IP65,IP67 Aluminium,Polycarbonate,Polypropylene Test,Muting through external safety module XPSLCMUT1160,LED display of operating modes and faults Safety light curtain type 4 Specifications Manufacturer Telemecanique (Instrument-Sensor) Supply Voltage 24 VDC (Instrument-Sensor) IP Protection IP65 (Instrument-Sensor) IP Protection IP67 (Instrument-Sensor) Connection Type Male Connector (Instrument-Sensor) Output Signal Type DC (Instrument-Sensor) Type of Operator DC (Instrument-Sensor) Type of Operator Automatic (Instrument-Sensor) Type of Operator Manual (Instrument-Sensor) Standards Type 4 SIL 3 (Instrument-Sensor) Connection Type 5 Pins Transmitter (Instrument-Sensor) Connection Type 8 Pins Receiver (Instrument-Sensor) Indication 1 Multi-Colour LED Transmitter (Instrument-Sensor) Indication 2 Dual Colour Leds Receiver (Instrument-Sensor) Output Signal Type Safety Outputs OSSD (Instrument-Sensor) Output Signal Type Solid-State (Instrument-Sensor) Output Signal Type PNP (Instrument-Sensor) Size 1060 mm (Instrument-Sensor) Application For Hand Protection (Instrument-Sensor) Type Transmitter-Receiver System Daisy Chain Master Component Light Curtain (Instrument-Sensor) Temperature Range -30 – 55°C (Instrument-Sensor) Temperature Range -10 – 55°C (Instrument-Sensor) Span 0 To 12 M (Instrument-Sensor) Span 0 To 4 M Features 2 PNP outputs Operating temperature range: for finger detection: – 20°C… 55°C, for hand and body detection: – 30°C… 55°C Be the first to review “Schneider XUSL4E30H106NM Transmitter-receiver system,Daisy chain master 0 – 12 m,0 – 4 m Type 4 SIL 3 For hand protection Safety light curtain type 4” Cancel replyYour email address will not be published. Required fields are marked *Your rating of this product Rate… Perfect Good Average Not that bad Very poor Name * Email * Save my name, email, and website in this browser for the next time I comment. Reviews There are no reviews yet.
