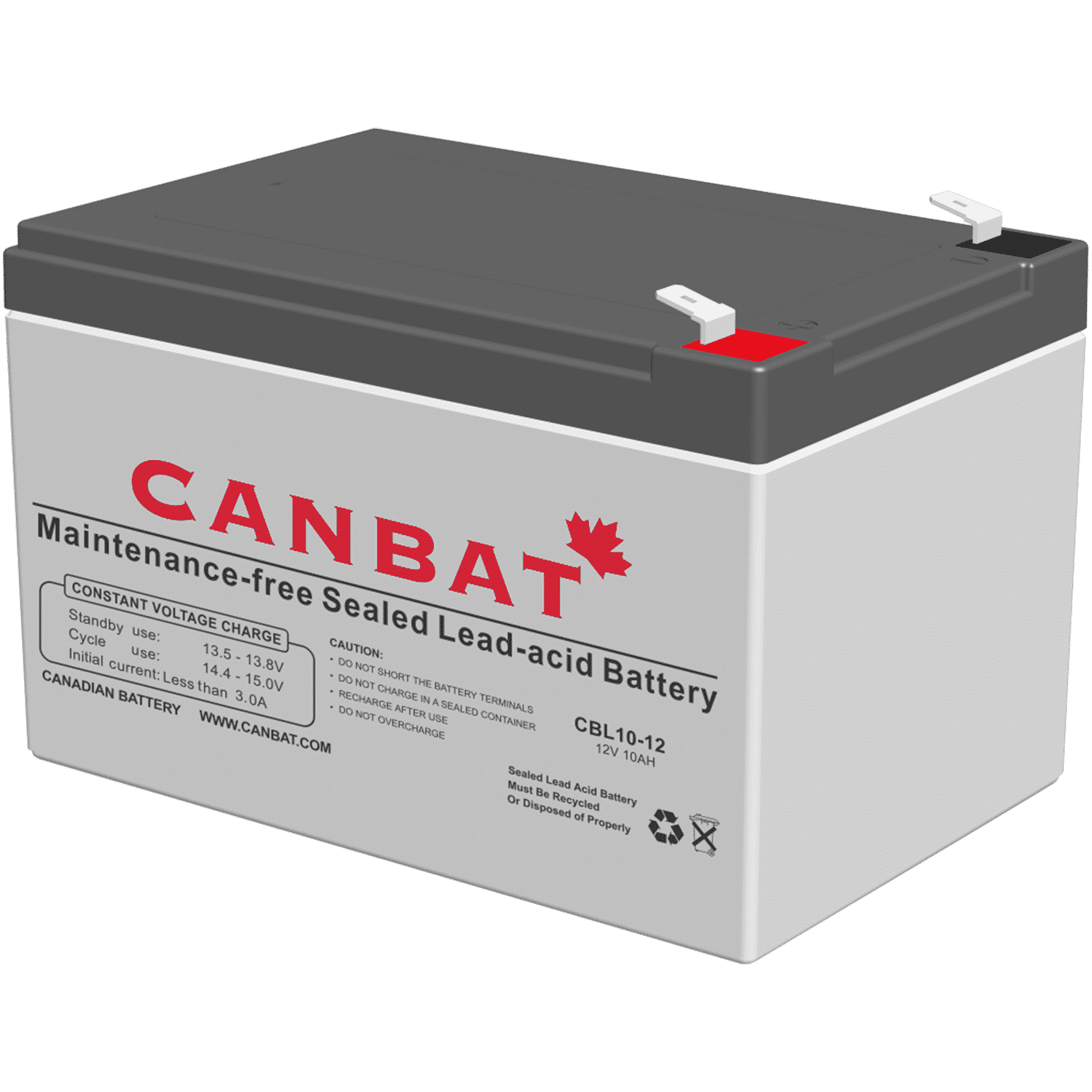

12V 10Ah SLA Battery

Description CBL10-12  |  12V 10Ah Sealed Lead Acid Battery  |  120Wh  |  F2 Terminal  |  6.75 lbs (3.06 kg)  |  Lead Calcium Alloy  |  UL 1989 Certified The Canbat 12V 10Ah SLA battery is a valve-regulated sealed lead acid (VRLA) AGM battery designed for standby and light cyclic applications requiring substantial reserve capacity. Featuring lead calcium alloy plate construction and absorbent glass mat (AGM) technology, the battery delivers maintenance-free operation, a self-discharge rate below 2% per month, and reliable float performance across a 20 year design floating life at 20°C. Rated at 10Ah and 120Wh, the CBL10-12 provides greater reserve capacity than compact 7Ah–9Ah standby batteries while maintaining compatibility with standard enclosures designed for higher-capacity 12V SLA formats. Certified to UL 1989. Typical Applications The CBL10-12 is designed for float standby and light cyclic discharge duty in systems requiring higher reserve capacity in a sealed, maintenance-free format. Rated at 10Ah (C20) at 12V, the battery is suited to applications requiring a cost-effective step up from standard 7Ah–9Ah standby formats with higher continuous standby loads or extended backup duration requirements. Typical deployment includes UPS backup power systems, alarm systems, fire detection panels, emergency lighting systems, access control systems, telecommunications infrastructure, network equipment, electric power systems (EPS), communication power supplies, building automation controls, DC control systems, medical monitoring equipment, and mobility equipment. The CBL10-12 is commonly used as a replacement 12V 10Ah SLA and AGM battery in UPS systems, alarm systems, fire alarm systems, emergency lighting installations, telecommunications equipment, network equipment, and commercial standby power applications. UL 1989 Certification The CBL10-12 is certified to UL 1989, the Underwriters Laboratories standard for sealed lead acid batteries, covering electrical performance, mechanical integrity, and safety requirements including overcharge tolerance and short circuit protection. Certification is issued following independent third-party laboratory evaluation — not manufacturer self-declaration. Canbat maintains UL 1989 certification across its sealed lead acid battery lineup. UL 1989 certification is commonly specified for security, fire alarm, emergency lighting, telecommunications, and backup power installations. VRLA AGM Construction The CBL10-12 12V 10Ah SLA battery uses valve-regulated absorbent glass mat (AGM) construction, with electrolyte immobilized within puncture resistant micro-porous glass mat separators. The sealed recombinant cell design prevents acid emission under normal operating conditions and permits installation in any orientation. Lead calcium alloy plate construction eliminates watering requirements, reduces gassing, and supports low self-discharge performance. Batteries stored at 25°C may be held up to six months before a refresh charge is required; storage at elevated temperatures reduces this interval. Technical Specifications 12V 10Ah SLA Battery — Specifications (CBL10-12) Part Number CBL10-12 Nominal Voltage 12V Rated Capacity (C20) 10Ah Energy 120Wh Terminal Type F2 Container Material ABS Plate Construction Lead Calcium Alloy Max Discharge Current (5s) 150A Internal Resistance Approx. 21mΩ Design Floating Life at 20°C 20 Years Self Discharge <2% per month at 25°C Operating Temp — Discharge 5°F to 122°F (-15°C to 50°C) Operating Temp — Charge 32°F to 104°F (0°C to 40°C) Storage Temp 5°F to 104°F (-15°C to 40°C) Certification UL 1989 Dimensions & Weight Physical Specifications Length 5.95 in (151 ± 2 mm) Width 3.86 in (98 ± 2 mm) Container Height 3.74 in (95 ± 2 mm) Total Height (with terminal) 3.98 in (101 ± 2 mm) Approx. Weight 6.75 lbs (3.06 kg) Canadian-Owned Battery Manufacturer  |  24/7 Technical Support  |  UL 1989 Certified  |  Nationwide Distribution
