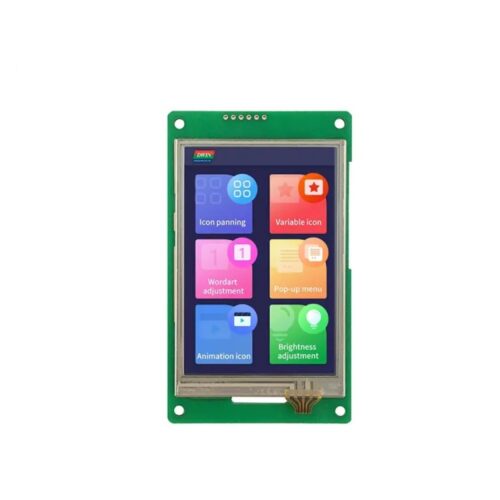

DWIN 3.5 Inch Smart LCM DMG48320C035_03WTC

DWIN 3.5 Inch Smart LCM DMG48320C035_03WTC : This DWIN 3.5 inch SMART Screen is quite useful and is full features load SMART screen. DWIN 3.5 Inch LCD Display called SMART screen because it comes with UI development Software pre-installed from the manufacturer which gives users great and useful tools to develop their own UI with great features. One can design UI Such as a button, slider, Graph, Text Display, etc on their own. User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed). Also, it is supported with RGB colour and 16.7M colours. It is also equipped with 300 nit brightness which makes it visible in daylight too. DWIN HMI 3.5 Inch Ips LCD Resistive Touch Display is compatible with All micro-controller Boards like Arduino, Raspberry and many more… which can be interface with I2C communications. Features:  Self-designed T5L ASIC, 16.7M Colors, 24bit,320*480 Pixel, G G structure ; Without touch screen/Resistive touch screen/Capacitive touch screen ; TTL/CMOS;10Pin_1.0mm; Download via SD card or on-line serial port; It is very easy to use the DWIN DGUS V7.6 GUIs Development, no coding skills required; Two Development System: DGUS II/ TA(Instruction set); IPS wide viewing angle: 85°/85°/85°/85° (L/R/U/D) ; SKU: DMG48320C035_03WTC Categories: Displays, Smart LCD Module
