Serial to Ethernet USR-TCP232-T2

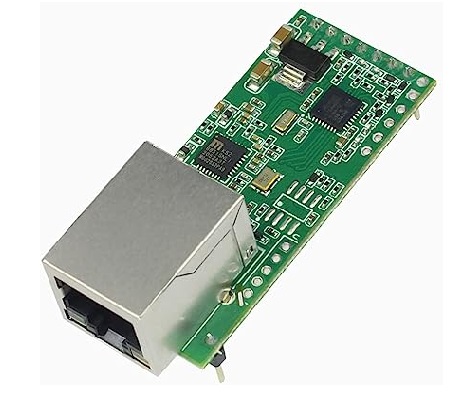

Serial to Ethernet USR-TCP232-T2  Introduction of Modules Serial to Ethernet USR-TCP232-T2 Serial to Ethernet converter module can realize data bidirectional transparent transmission between serial TTL and RJ45 Port. USR-TCP232-T2 is based on Cortex-M0 core. It has characters of low power, fast speed, and high efficiency. Features of Serial to Ethernet USR-TCP232-T2  DHCP &DNS, automatically obtain an IP address and query IP address through serial setting protocol. Set parameters through webpage and serial AT command. Upgrade firmware via network. Auto-MDI/MDIX, RJ45 port with 10/100Mbps. Serial port baud rate from 600 bps to 460.8 Kbps, Check bit of None, Odd, Even, Mark and Space. Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HttpD Client. Support virtual serial port and provide corresponding software USR-VCOM. Heartbeat package mechanism to ensure connection is reliable, put an end to dead link. User-defined registration package mechanism, check connection status and use as custom packet header. Under TCP Server mode, Client number ranges from 1 to 16; default number is 4. The global unique MAC address bought from IEEE, user can define MAC address. Restore factory default. Across the gateway, switches, routers. Can work in LAN, also can work in the Internet (external network). Provide PC TCP/IP socket programming example such as VB,C ,Delphi, Android and IOS. Support customization Serial UART Ethernet Module – M0 Series Solution Cost-Effective, -25~75C Keep-Alive Detect the inactive connection, rebuild connection automatically Built-In Webpage Configure parameters DHCP DNS DNS and DHCP automatically obtain an IP address Firmware Upgrade firmware via network Client connection Support 1 to 16 clients to be connected in TCP server mode Application Field of Serial UART Ethernet Modules Industrial data transmission, industrial automation. Security and protection monitoring, public security. Smart home, power control, environmental monitoring, intelligent agriculture. Door check on work attendance system, POS system, rice selling system. Building automation system, power monitoring, self-service banking system, telecom machine room monitoring. SKU: Converter USR-TCP232-T2 (E8) Categories: Ethernet Module, IoT, IoT Modules
